22live is a Solid State Logic Live Sales Partner. As an SSL Live stockist we are well positioned to support sales customers and can provide demonstrations, and spefication advice. Please get in touch for more info on all things SSL.

SSL Live Consoles

SSL Live consoles have met widespread praise from many of the world’s leading live engineers. SSL Live consoles are designed to help highly skilled operators deliver outstanding performances in the most demanding applications in Touring, Installation, Houses Of Worship and Theatre. And now with patented next-gen Optimal Core Processing (OCP) offering even more DSP power and flexibility, SSL Live consoles are your key to a superior sonic performance.

L650

The Most Powerful SSL Live Console To Date

Developed to support the most demanding large-scale productions, where multiple live, broadcast and OTT stream mixes are required, the L650 is the new jewel of the SSL Live crown, built on a foundation of superior sonic performance.

  • Input channels: 312, Stem Groups: 96, Auxes: 210, Masters: 32, Matrix: 4 x 32 inputs / 36 outputs, VCA’s: 48, FX Slots: 96

  • Analogue IO: 16 mic/line, 16 line out, 2x headphone

  • Local AES/EBU I/O: 4 pairs (with SRC)

  • MADI Ports: 6 coax, 2 optical

  • Local Dante @ 96KHZ - Optional 32x32 Redundant Pair

  • SSL Blacklight II Interface (MADI Optical link to Stagebox via Blacklight Concentrator)

  • Optional SSL X-LIght Interface (Dante Optical link to Stagebox via X-Light Concentrator)

  • Main Touch Screen: 19" 1500 Nits

  • Power supply: Redundant power supply built-in

  • Width: 1376mm

  • Net Weight: 85KG

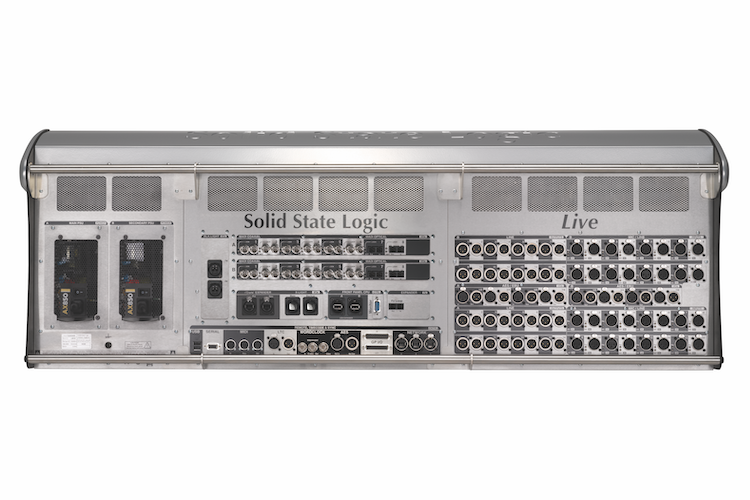

L550+

Grand Production Masterpiece

The L550 has cut its teeth on global tours for some of the world’s biggest stars. It offers a large scale control surface for operators who require the power and agility to handle the grandest productions.

  • Input channels: 288, Stem Groups: 84, Auxes: 204, Masters: 30, Matrix: 4 x 32 inputs / 36 outputs, VCA’s: 48, FX Slots: 96

  • Analogue IO: 32 mic/line, 32 line out, 2x headphone

  • Local AES/EBU I/O: 8 pairs (with SRC)

  • MADI Ports: 12 coax, 4 optical

  • Local Dante @ 96KHZ - Optional 32x32 Redundant Pair

  • SSL Blacklight II Interface (MADI Optical link to Stagebox via Blacklight Concentrator)

  • Optional SSL X-LIght Interface (Dante Optical link to Stagebox via X-Light Concentrator)

  • Main Touch Screen: 19" 1500 Nits

  • Power supply: Redundant power supply built-in

  • Width: 1191mm

  • Net Weight: 90KG

L450

More Power For Your Production

Based on the acclaimed triple-wide fader tile configuration of the L200 Plus, the L450 console utilises the same ergonomic layout but features larger 19” high resolution touch screen and more DSP power to comfortably handle larger productions. The SSL Live hammerhead just got a bigger bite.

  • Input channels: 240, Stem Groups: 60, Auxes: 156, Masters: 24, Matrix: 4 x 32 inputs / 36 outputs, VCA’s: 36, FX Slots: 60

  • Analogue IO: 16 mic/line, 16 line out, 2x headphone

  • Local AES/EBU I/O: 4 pairs (with SRC)

  • MADI Ports: 6 coax, 2 optical

  • Local Dante @ 96KHZ - Optional 32x32 Redundant Pair

  • SSL Blacklight II Interface (MADI Optical link to Stagebox via Blacklight Concentrator)

  • Optional SSL X-LIght Interface (Dante Optical link to Stagebox via X-Light Concentrator)

  • Main Touch Screen: 19" 1500 Nits

  • Power supply: Redundant power supply built-in

  • Width: 1376mm

  • Net Weight: 85KG

SSL Live Bundles now available

  • L550 Plus MADI Tour Bundle

    1 x L550+ Console, 2 x ML32:32 stagebox, 1 x MADI Blacklight Concentrator

  • L450 Dante Install Bundle

    1 x L450 Console, 2 x SB32:24 stagebox, 1 x BLII Bridge

  • L350 Plus MADI Tour Bundle

    1 x L350+ Console, 2 x ML32:32 stagebox, 1 x MADI Blacklight Concentrator

  • L200 Plus MADI Tour Bundle

    1 x L200+ Console, 2 x ML32:32 stagebox, 1 x MADI Blacklight Concentrator

  • L350 Plus Dante Tour Bundle

    1 x L350+ Console, 2 x SB32:24 stagebox, 1 x X-Light Bridge

Get in touch for more info on your ideal configuration

L350+

All the Power and Grace in a Smaller Frame

The L350 Plus is a deceptively powerful console. It packs a 24 fader control surface into a compact frame and delivers ample power for the majority of mid to large scale productions. It offers SSL’s premium performance and streamlined mixing experience in a format that is a perfect fit for demanding productions where space is restricted.

  • Input channels: 216, Stem Groups: 48, Auxes: 84, Masters: 18, Matrix: 4 x 32 inputs / 36 outputs, VCA’s: 36, FX Slots: 60

  • Analogue IO: 16 mic/line, 16 line out, 2x headphone

  • Local AES/EBU I/O: 4 pairs (with SRC)

  • MADI Ports: 6 coax, 2 optical

  • Local Dante @ 96KHZ - Optional 32x32 Redundant Pair

  • SSL Blacklight II Interface (MADI Optical link to Stagebox via Blacklight Concentrator)

  • Optional SSL X-LIght Interface (Dante Optical link to Stagebox via X-Light Concentrator)

  • Main Touch Screen: 19" 1500 Nits

  • Power supply: Redundant power supply built-in

  • Width: 923mm

  • Net Weight: 86KG

L200+

The Unique Layout of the L200 Plus

The L200 Plus is the ideal mid-scale production console with a superb balance of processing power and plenty of hands on control. The L200’s striking design is driven by ergonomic considerations, placing all essential controls within easy reach. L200’s unique layout allows for screen arms or laptop mounts to be attached to either or both sides of the console creating a compact yet extremely versatile working environment.

  • Input channels: 144, Stem Groups: 36, Auxes: 84, Masters: 8, Matrix: 4 x 32 inputs / 24 outputs, VCA’s: 24, FX Slots: 48

  • Analogue IO: 12 mic/line, 2 TB, 3.5mm input, 12 line out, 2x headphone

  • Local AES/EBU I/O: 4 pairs (with SRC)

  • MADI Ports: 6 coax, 2 optical

  • Local Dante @ 96KHZ - Optional 32x32 Redundant Pair

  • SSL Blacklight II Interface (MADI Optical link to Stagebox via Blacklight Concentrator)

  • Optional SSL X-LIght Interface (Dante Optical link to Stagebox via X-Light Concentrator)

  • Main Touch Screen: 17" 600 Nits

  • Power supply: Redundant power supply built-in

  • Width: 1370mm

  • Net Weight: 85KG

L100+

The L100 Plus provides a physically smaller premium solution for customers who prioritise outstanding sonic performance in space restricted installations, for sub-mix positions or corporate production. L100 sets itself apart with its compact,
12 + 2 fader configuration frame, while retaining the same fast access layer / bank switching and Super-Q technology
to ensure no channel, group, aux, VCA or master is ever far away from the engineer’s fingers. Users who require more faders can expand the L100 with the addition of SSL’s Remote Tile and more screen space can be added via external touchscreens and tablet control.

  • Input channels: 128, Stem Groups: 24, Auxes: 48, Masters: 6, Matrix: 4 x 32 inputs / 12 outputs, VCA’s: 12, FX Slots: 48

  • Analogue IO: 16 mic/line, 16 line out, 2x headphone

  • Local AES/EBU I/O: 4 pairs (with SRC)

  • MADI Ports: 4 coax

  • Local Dante @ 96KHZ - Optional 32x32 Redundant Pair

  • Optional SSL Blacklight II Interface (MADI Optical link to Stagebox via Blacklight Concentrator)

  • Optional SSL X-LIght Interface (Dante Optical link to Stagebox via X-Light Concentrator)

  • Main Touch Screen: 17" 600 Nits

  • Power supply: Optional Redundant power supply

  • Width: 691mm

  • Net Weight: 52KG

Remote I/O MADI

BL II.D - Blacklight II MADI Concentrator

The 2U unit features a redundant pair of SSL’s proprietary Blacklight II connectors on the front panel (which can be expanded to two pairs). Each connection carries 256 channels of audio at 96 kHz and is used for efficient cable connection to the console. The rear panel provides 8 redundant pairs of coaxial MADI connectors (which can be expanded to 16 pairs). This high density MADI I/O device delivers pristine digital audio interconnection between any configuration of ML 32.32 analogue and D 32.32 AES/EBU units and up to two SSL Live consoles.

ML 32.32 - MADI Analogue Stagebox

As standard the 5U ML 32.32 analogue stagebox is fitted with 32 remote controlled SSL SuperAnalogueTM mic/line inputs and 32 line outputs on the front panel.

D 32.32 - MADI AES/EBU Digital Stagebox

The D 32.32 is a 2U digital stagebox providing 16 x AES/EBU pairs of front panel XLR connectors.

Remote I/O Dante

X-Light Bridge

For the touring market, the 1U X-Light Bridge interface designed to be deployed within stage I/O racks, features a fully redundant pair of X-Light connections using Neutrik opticalCON Quad format connectors on the front panel. On the rear panel there are two redundant pairs of Neutrik etherCON format Dante connections for audio and control distribution. Up to eight SB 32.24 stageboxes can now be connected via a pair of network switches to a single X-Light Bridge redundantly at 96 kHz with gain control of each input.

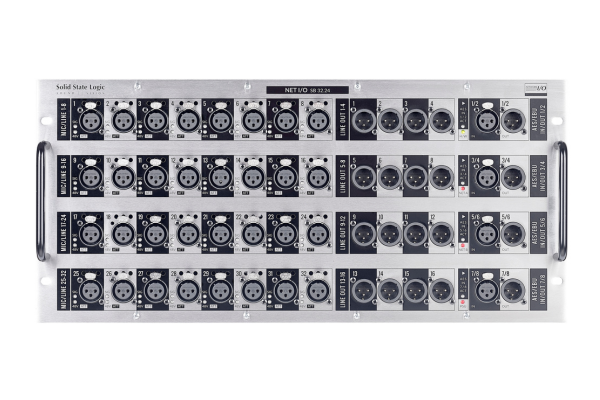

SB 32.24 - Dante Analogue Stagebox

The SB 32.24 is a 5U ruggedised enclosure featuring dual redundant power supplies, 32 mic/line inputs, 16 analogue line outputs and 8 digital inputs and outputs on 4 AES3 input/output pairs. It has a pair of redundant RJ45 Dante network connections in addition to a user configurable SFP port that can be fitted with RJ45 or optical connectors.

SB 16.12 - Dante Analogue Stagebox

SB 16.12 is a 3U ruggedised enclosure featuring dual redundant power supplies, 16 mic/line inputs, 8 analogue line outputs and 4 digital inputs and outputs on 2 AES3 input/output pairs. It has a pair of redundant RJ45 Dante network connections in addition to a user configurable SFP port that can be fitted with RJ45 or optical connectors.

SB 8.8 & SB i16 - Dante Analogue Stageboxes

These 2RU units offer different configurations but share features. The SB 8.8 offers eight mic/line inputs and eight line level outputs. SB i16 offers sixteen mic/ line inputs. Both models feature a pair of redundant RJ45 Dante network connections, a pair of network extension connections, GPIO connectivity and redundant PSU’s.
